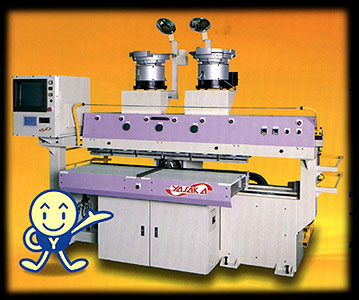

CNC Boring, Gluing, Dowel Feeding Machine

　


　

  • Realized High Speed Auto Operation.

  • Possible to set 2 sizes dowel such as [ v6 & v8 ] or [ v8 & v10 ].

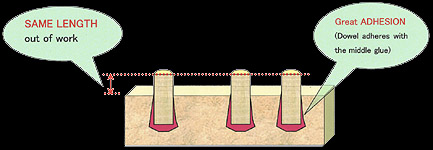

  • High viscosity glue is possible.

  • Can control glue-inserted volume every 0.01 second.

  • Mounted Easy-programming Original Software.

  • 1500mm working stroke.

  • Change production of works size under 700mm is possible.

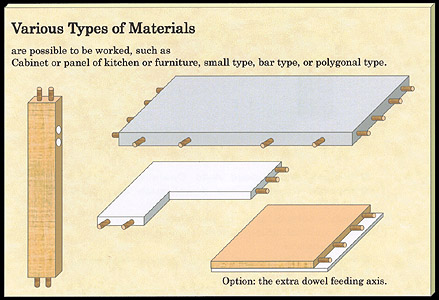

  • Can work on bar type or small type work piecs.

　


Visual Data INPUT System Easy Operation, with only touching the display

　


　


Type Working length Working height System of head Clamps NC control axis
NCBD-5 1500mm 70mm 2 Boring axes
1 Glue unit
2 Dowel feeding axes		 6 2 axes

Size of machine (L)2850mm x (W)1470mm x (H)2100mm / Weight 1600kg

　


　
